DP01F-4K6G

4K60Hz DisplayPort & USB/IR/RS232 KVM Fiber Optic Extender

  • Supports DisplayPort 1.2
  • Supports HDCP 2.2
  • Resolution up to 4K@60Hz 4:4:4
  • Working distance up to 60 km, depending on thefiber module that is used.
  • Supports full-duplex RS232 (115200bps), bi-directionalIR (30~60KHz), or 2 ports of USB (keyboard & mouse only) for remote controltransmission, either one.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry

DP01F-4K6G is a DisplayPort (DP) extender that overcomes the length restriction of a standard DP cable using fiber optic cable. The extender can send DisplayPort Video & Audio data with USB, RS232 or bi-directionalIR signal for up to 60km.

DisplayPort KVM Extender, KVM over Fiber remote control.

DisplayPort over Fiber KVM Extender

Due to its excellent visual performance, DisplayPort has been widely utilized in various fields, such as esports, medical, and industrial applications in recent years. With SC&T's DisplayPort Extender over Fiber Optic products, greater flexibility and compatibility can be achieved for advanced projects.

DisplayPort over Fiber Optics

DP01F-4K6G can accommodate an SFP+ 10G module, offering excellent distance extension through single/multi-mode optical fiber cables. It also supports USB, RS232, or bidirectional infrared signals.

Fiber Optical DisplayPort Extender KVM with USB ports.
DP01F-4K6G Tx & Rx

Comprehensive Audiovisual Specifications

DP01F-4K6G boasts a maximum resolution support of 4K@60Hz 4:4:4 and complies with the HDCP 2.2 standard, offering a superior 4K DisplayPort audiovisual experience.

4K 60Hz DisplayPort Extender, KVM over Fiber Optical.

Long-Range DisplayPort Extension with 10G SFP+

DP01F-4K6G utilizes the 10G SFP+ fiber module, allowing for extensions up to 300 km over single-mode fiber and 10 km over multi-mode fiber for various distance requirements. You can also use third-party SFP+ modules.

DisplayPort to HDMI Conversion

DP01F-4K6G can be used in conjunction with SC&T's HDMI Fiber Extender (HE01FR-4K6G). By combining DP01FT-4K6G with HE01FR-4K6G, DisplayPort can be converted to HDMI output, enhancing the flexibility of device usage.

DP01F-4K6G can be used with HE01F-4K6G to achieve DisplayPort to HDMI conversion and extension at the same time.

Diverse Control Options

This extender offers full-duplex RS232, bidirectional IR, USB (limited to keyboard and mouse), and other remote control methods. You can select one of these control options using the rotary switch on the device panel.

DisplayPort extender with USB/KVM, RS232, and IR control options.

Why Choose SC&T?

SC&T provides the best FAE service & technical support.
Highly Mature Product Lines

For over 20 years, SC&T has provided professional audiovisual, surveillance equipment distribution, and system integrations with top-quality, well-developed, and widely utilized products. In addition, we do not operate any form of online retailing, guaranteeing the interests of our global customers.

Comprehensive Factory Inspection

SC&T has maintained a customer complaint rate of less than 0.1% as we emphasize our product quality.

SC&T products undergo a thorough inspection by our dedicated engineering team to guarantee optimal functionality before being packaged and shipped. We aim to minimize the chances of DOA (Dead on Arrival), malfunctions, or inoperable units, maximizing the efficiency of your integration projects.

Pre-Sales & After-Sales Service

With over 20 years of industry experience, SC&T has extensive knowledge in providing on-site FAE support. We provide the most comprehensive FAE consulting services, both before and after-sales. Furthermore, all our products are covered by a two-year warranty.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Supports DisplayPort 1.2
  • Supports HDCP 2.2
  • Resolution up to 4K@60Hz 4:4:4
  • Working distance up to 60 km, depending on thefiber module that is used.
  • Supports full-duplex RS232 (115200bps), bi-directionalIR (30~60KHz), or 2 ports of USB (keyboard & mouse only) for remote controltransmission, either one.
  • DP01FT-4K6G could work with HE01FR-4K6G, using DisplayPort as input and HDMI as output
Installation View
DisplayPort over Fiber KVM Extender connection diagram.

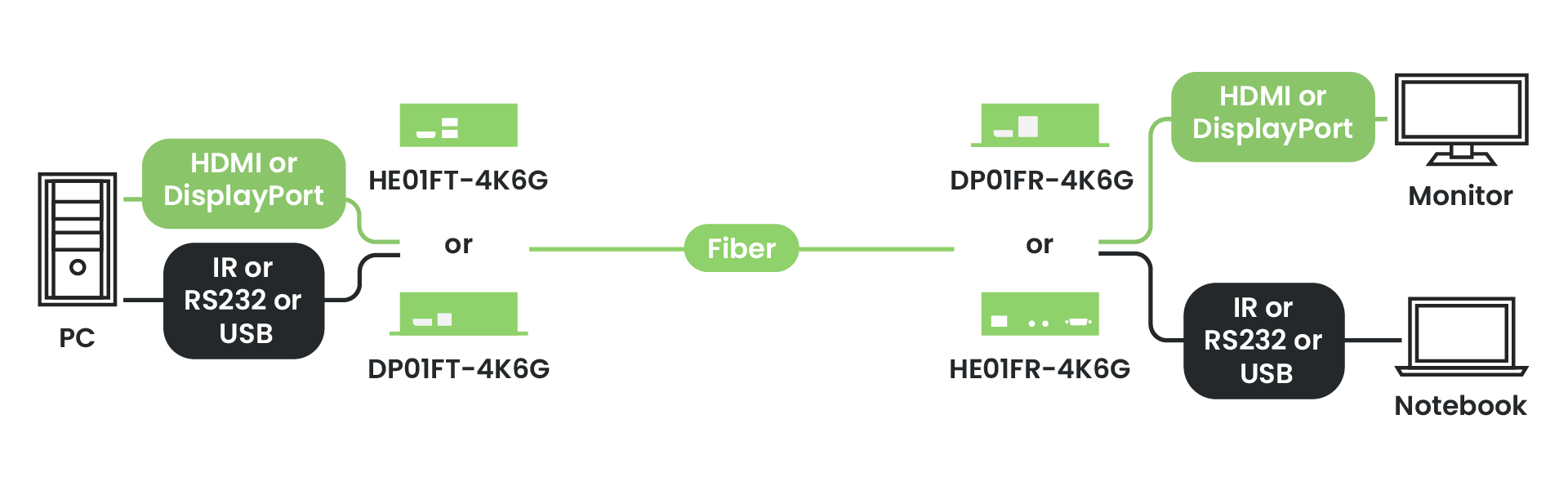

Connect with HE01FR-4K6G
DisplayPort over Fiber KVM Extender connection diagram.
Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon

Specification

ITEM NO.

DP01FT-4K6G

DP01FR-4K6G

Support

Compliance

DisplayPort 1.2, HDCP 2.2, 3D, HDR

Max. HDMI Resolution

4K@60Hz 4:4:4

Max. Transmission Distance

60KM over Single-mode, 300M over Multi-mode

Audio Format

DisplayPort Audio pass-through

RS232 Brad Rate

115200 bps (Full Duplex)

IR Support

30~60KHz, ±10°, 5M, Bi-Directional

30~60KHz, ±55°, 5M, Bi-Directional

Ports & Interfaces

Video Input

1 x DisplayPort

1 x SFP+ 10G

Video Output

1 x SFP+ 10G

1 x DisplayPort

RS232 Interface

1 x DB9(Female)

1 x DB9(Male)

IR Interface

2 x 3.5mm Phone Jack

2 x 3.5mm Phone Jack

USB Connector

1 x USB Type B

2 x USB Type A

Link Cable

Multi-mode/ Single-mode Fiber Optic Cable
