DisplayPort Transmission
Next
DisplayPort Extender
DP02U

4K DisplayPort KVM with USB CAT5e Extender 150M

  • Resolution up to 4K@30Hz 4:4:4.
  • Signal extension up to 150M over CAT5e or greater.
  • Built-in 4 ports USB at RX unit.
  • Supports bi-directional RS232 transmssion.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry

DP02U is a DisplayPort KVM extender that use HDBaseT technology to send uncompressed 4K UHD video & audio, USB, bi-directional RS232 signals over a cost-effective Ethernet cable, It supports resolution up to 4K@30Hz 4:4:4 and the transmission distance up to 150M. The 4 built-in USB ports at RX unit can connect multiple USB devices, such as keyboards, mouses, and flash drives. It is an ideal solution to show video from a PC/laptop on a projector/monitor.

Easily Protect Your Valuable Data over Remote Control

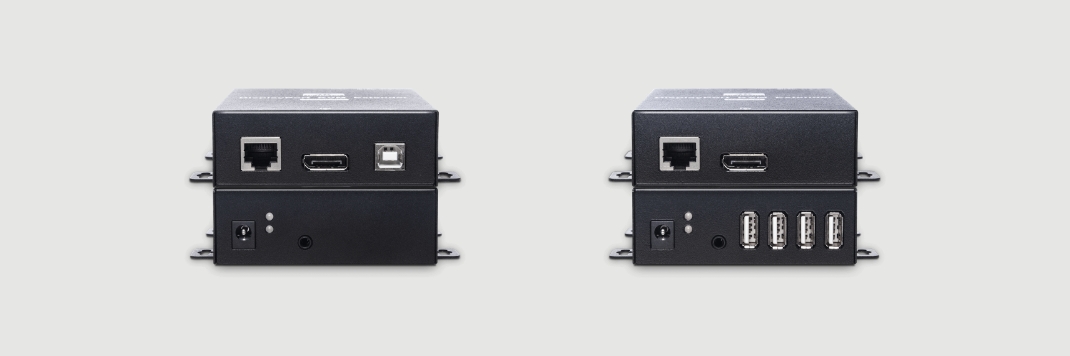

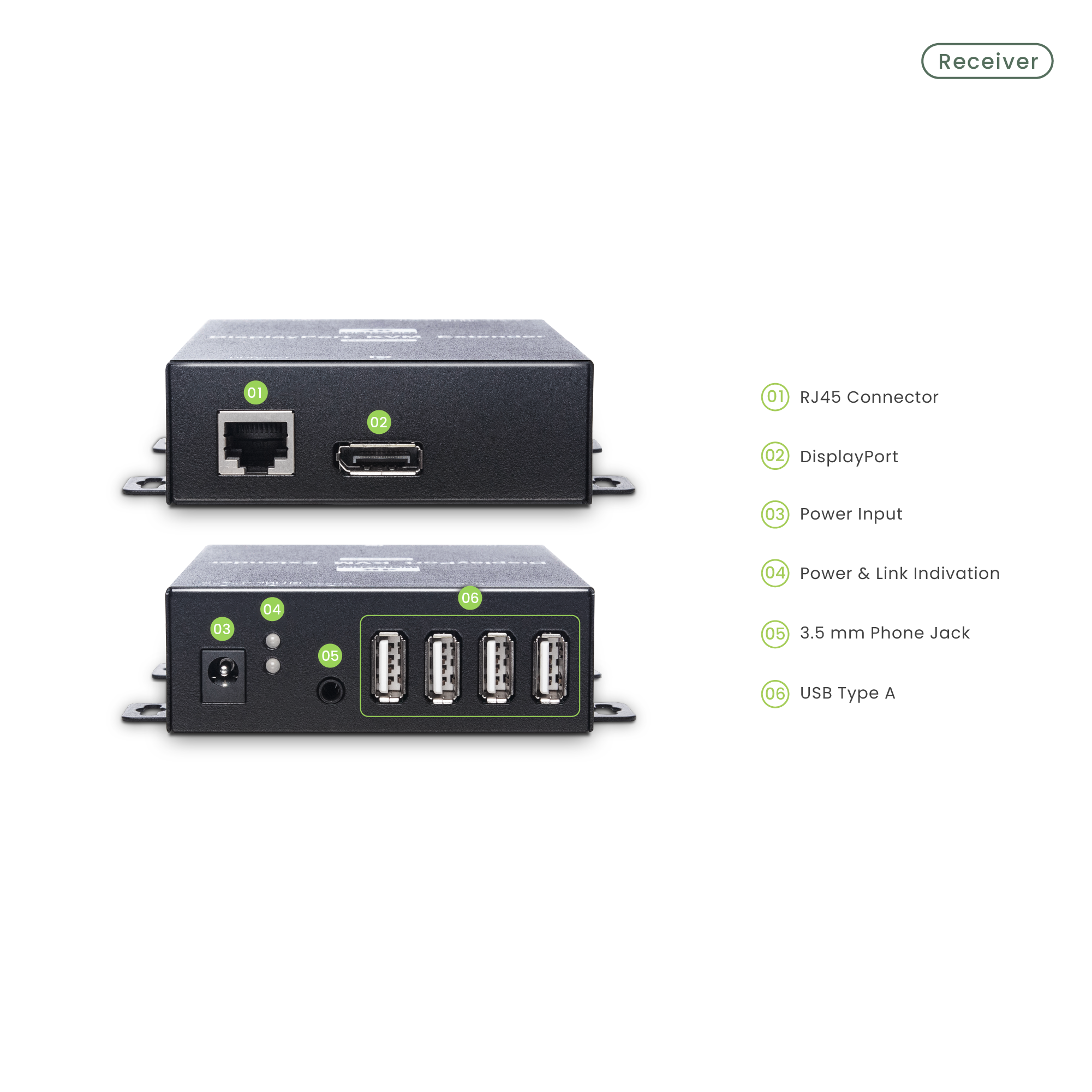

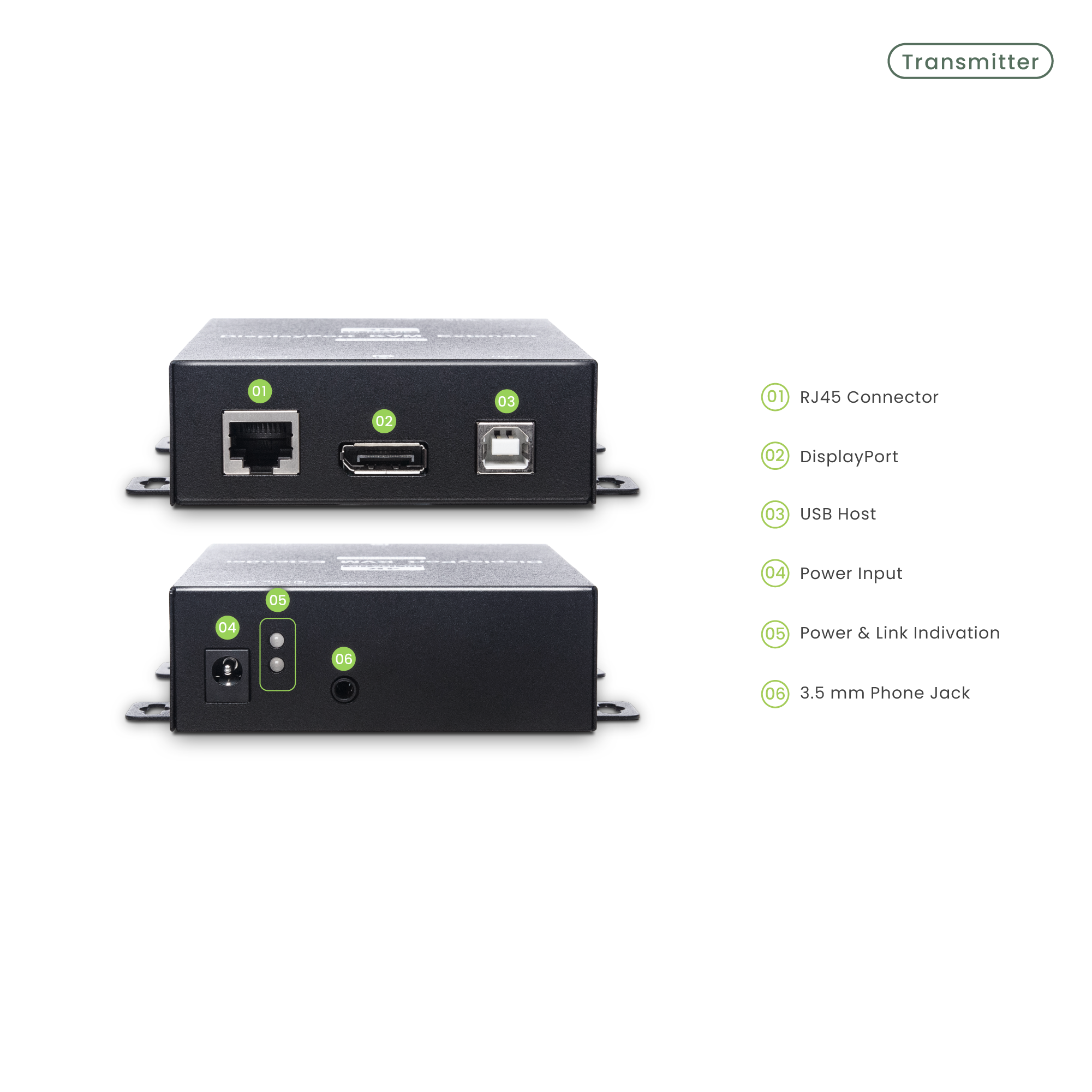

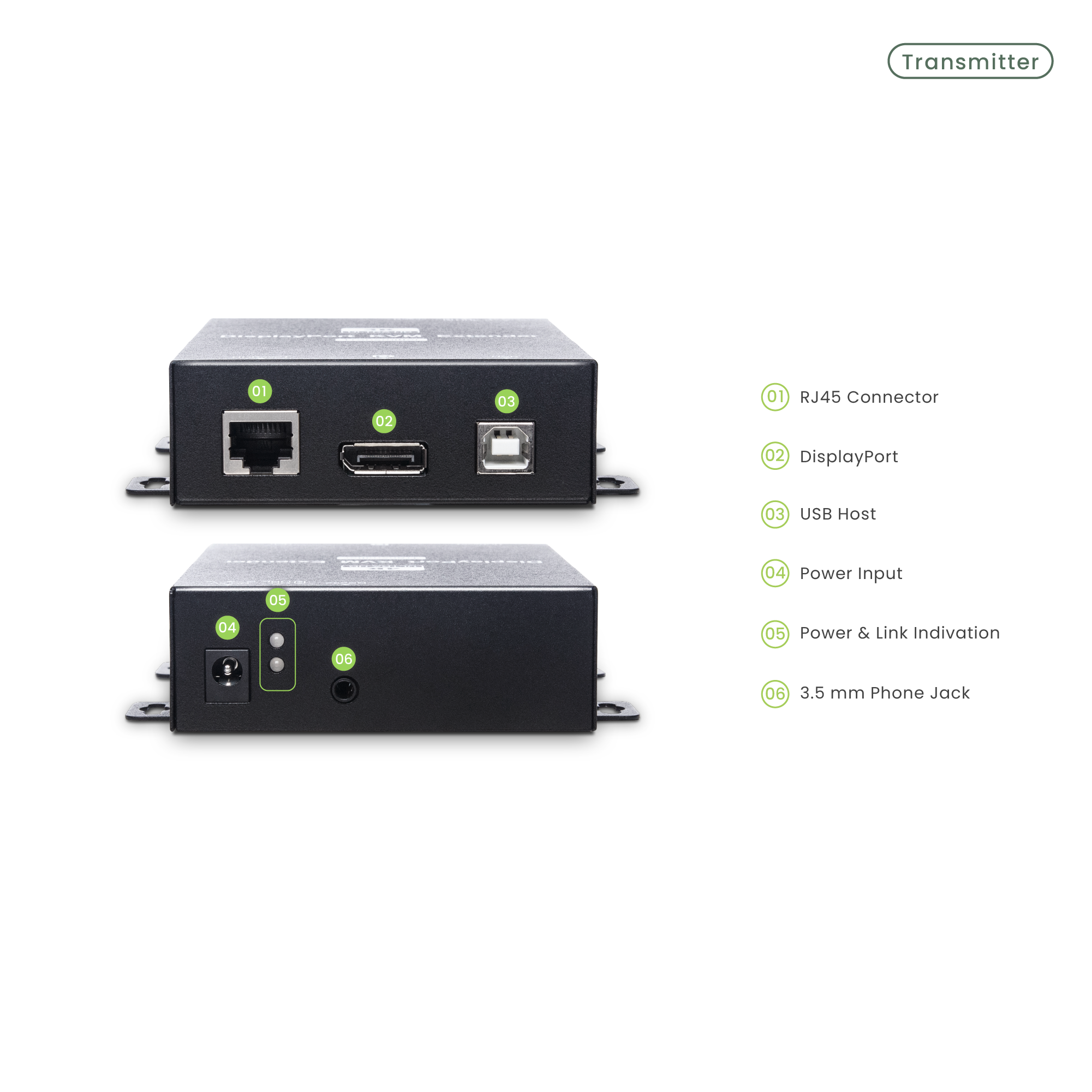

(L) DP02U Tx, (R) DP02U Rx

Greatly Increase the Mobility of Your Costly DisplayPort PC

DisplayPort is an ideal signal for specific projects like industrial and commercial. To provide diverse solutions for the markets, we designed DP02U, 4K DisplayPort KVM extender for remote control. It allows your PCs/ data to be put in a secured room and control them from 70M away, preventing valuable assets from accidents and errors making irreversible damages.

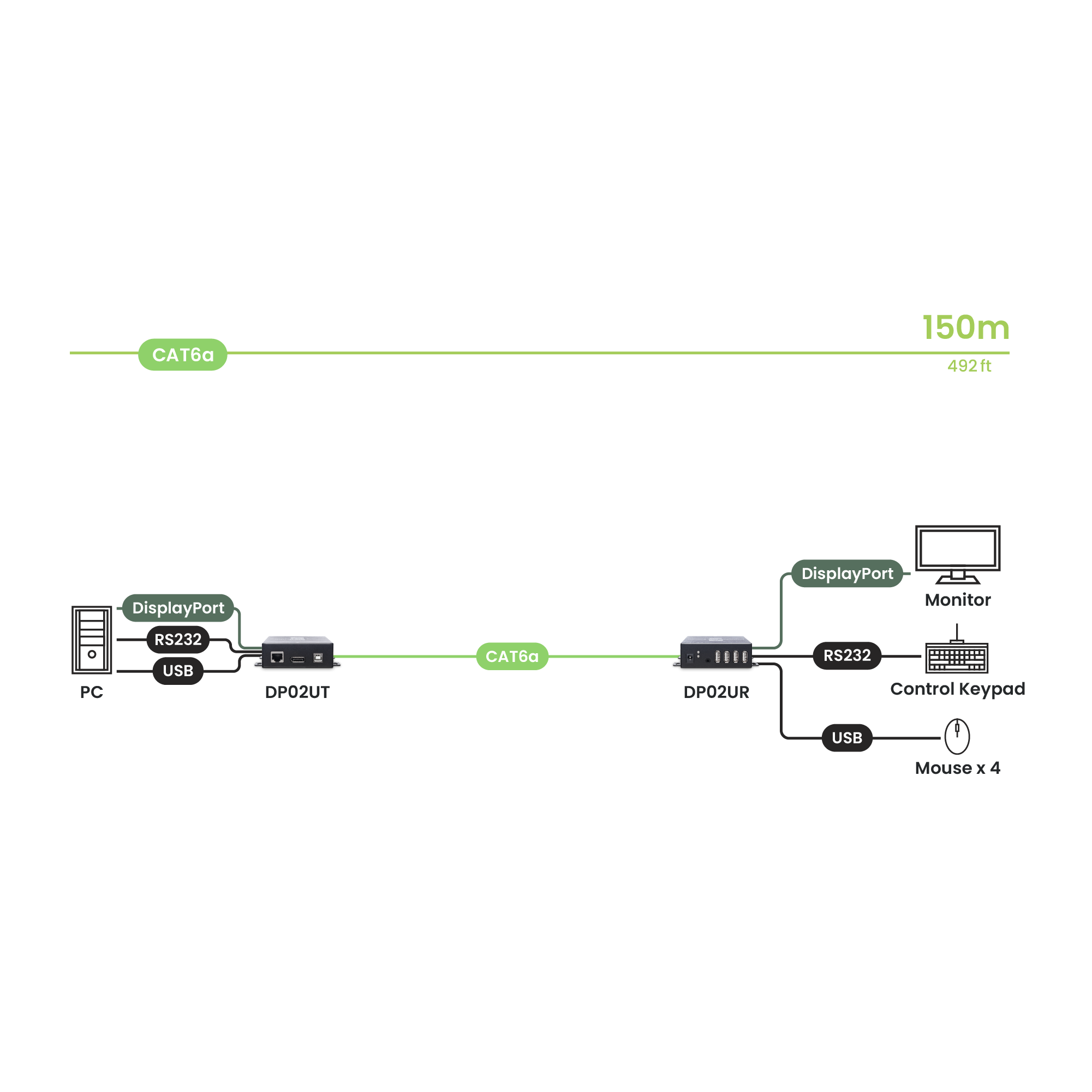

Application

High-quality Video & Audio

DP02U uses HDBaseT technology to provide uncompressed 4K@30Hz 4:4:4 DisplayPort video. It also supports LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA for the audio format, which can meet the requirements for most projects.

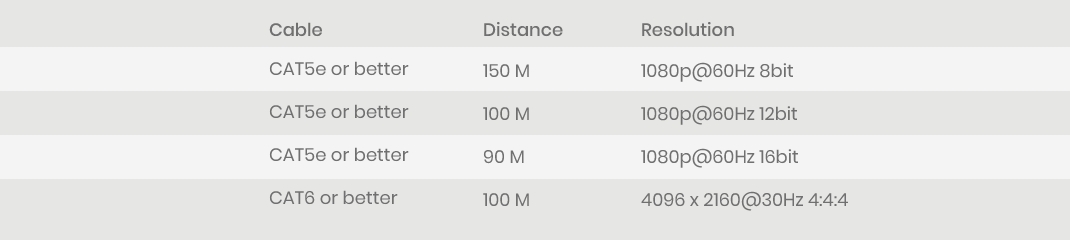

Different Cables for Different Requirements

Based on your requirement, You can use regular Ethernet cables to reach different distances and video resolutions.

*The test result is conducted by the application of CommScope network cables.

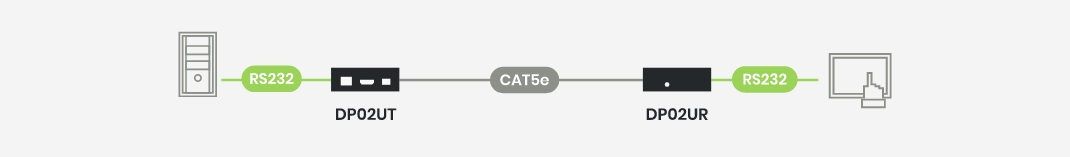

Bi-directional RS232 Transmission

Allow you to control a remote RS232-enabled device on the local side or the other way around. The touch panel is also supported for professional applications such as industrial control and access point.

Durable and Stable

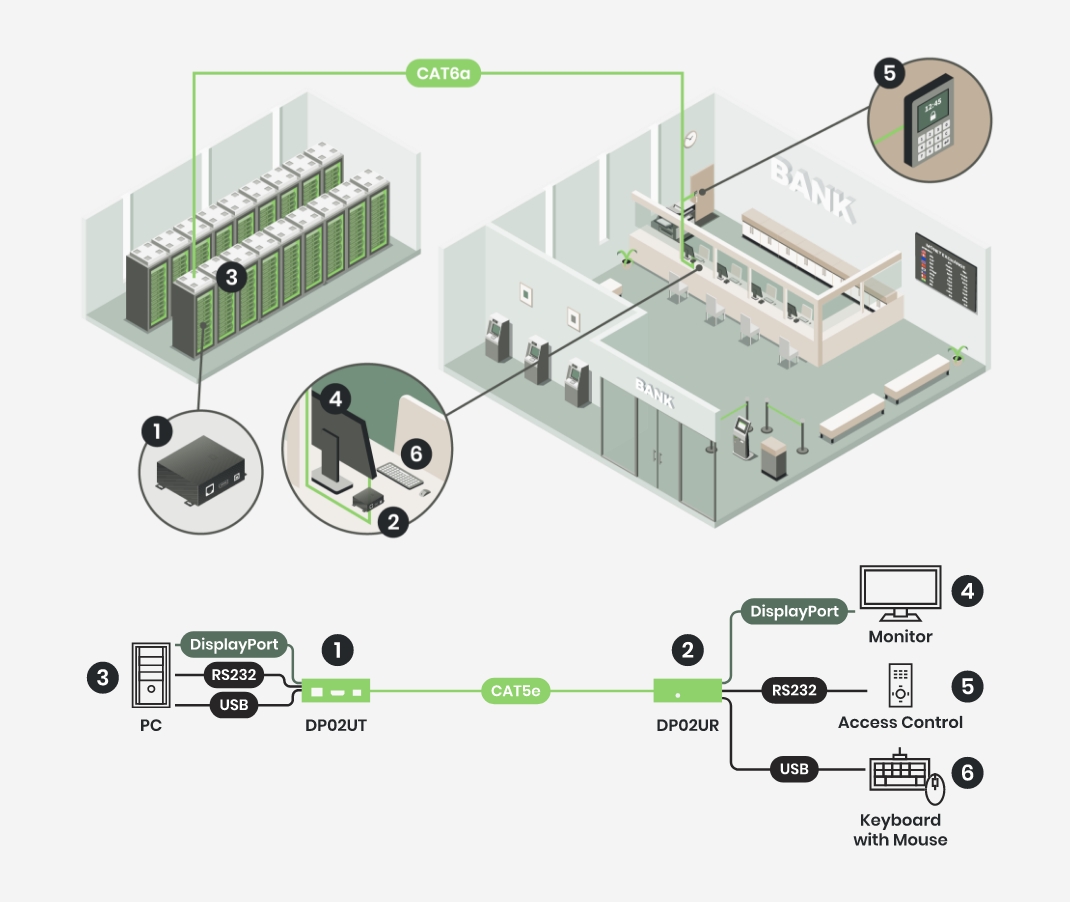

Applied in automotive manufacturing and banking where have high demands for stable and durable performance.

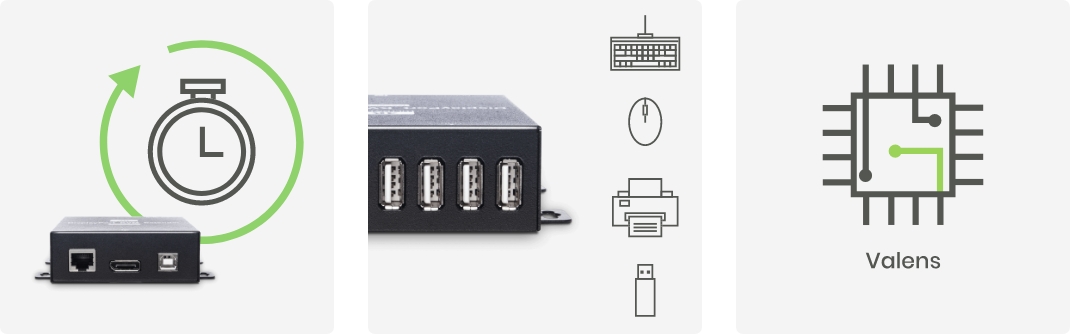

USB 2.0 Transmission

Built-in 4 USB 2.0 ports to connect keyboards, mice, flash drives...etc for remote control.

Cost-effective Solution

Despite high stability and durability, DP02U, compared to the market, has a more competitive price to help you save more budget for your projects.

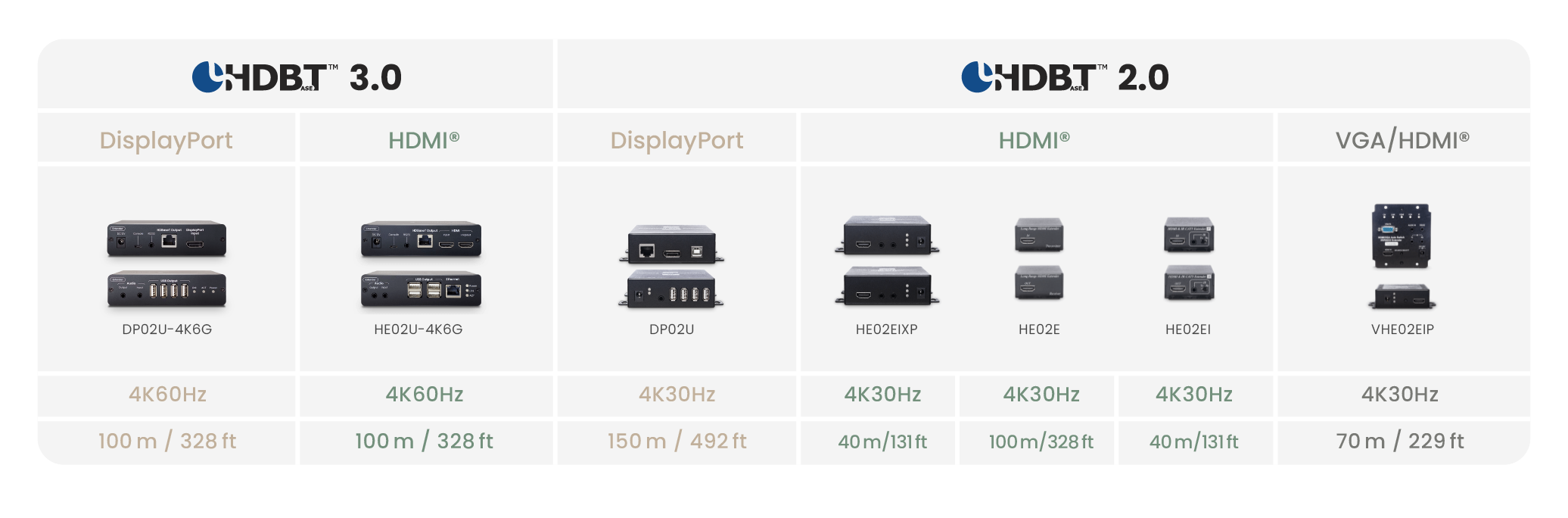

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Resolution up to 4K@30Hz 4:4:4.
  • Signal extension up to 150M over CAT5e or greater.
  • Built-in 4 ports USB at RX unit.
  • Supports bi-directional RS232 transmssion.
Firmware/Software

Release Date

Ver.

Release Note

File Name

September 1, 2023

V1.0_2309011

Firmware Upgrade
icon

Release Date

September 1, 2023

Ver.

V1.0_2309011

Firmware Upgrade
icon

July 17, 2019

V1.0_2007171

Firmware Upgrade
icon

Release Date

July 17, 2019

Ver.

V1.0_2007171

Firmware Upgrade
icon

November 27, 2019

V1.0_2007171

Firmware Upgrade
icon

Release Date

November 27, 2019

Ver.

V1.0_2007171

Firmware Upgrade
icon
Tutorial Video

Show More
icon

Specification

ITEM NO.

DP02UT

DP02UR

Support

Compliance

DP 1.2a, HDCP, USB 2.0, 1.1, 1.0

Max. DisplayPort Resolution

4K@30Hz 4:4:4

Max. Transmission Distance

150M at 1080p@60Hz, 100M at 4K@30Hz 4:4:4

Audio Support

LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA

RS-232 Baud Rate

115200 bps/ Full duplex

Ports & Interfaces

Input Connector

1 x DisplayPort

1 x HDBaseT

Output Connector

1 x HDBaseT

1 x DisplayPort

USB Connector

1 x USB-Type B

4 x USB-Type A

RS232 Interface

DB9(F)/3.5mm Stereo Phone Jack

DB9(M)/3.5mm Stereo Phone Jack

Link Cable

CAT6 or greater
