UE03

USB 2.0 CAT5e Extender with 4 Port Hub

  • Extends 4 USB signals over an Ethernet cable.
  • Signal extension up to 50M (USB2.0), 90M (USB1.0, 1.1) over CAT5e.
  • Supports USB 2.0 high-speed and USB 1.1 low-speed, full speed devices.
  • Built-in 4 USB ports at TX unit for remote control.
  • Plug & play.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry

UE03 is a peripheral device designed to extend 4 USB 2.0 signals, such as USB cameras, touch screen, touchpad, HDD(External Hard Drive), USB flash drives, keyboards, mousse and so on. With the extender, you can easily control a remote PC without being around it.

There's no such thing as simple. Simple is hard.

Have you ever found your USB extender died after only using it a couple of times? USB extenders are simple devices, and we can find a lot on the Internet, but few are long-lasting and high-performing enough.

Compatibility

For compatibility, in our experience, Keyboard and mouse with wire> Wireless keyboard and mouse> Webcam> 1080p webcam> Touch panel. The keyboard and mouse are the simplest, touch panels are the most complicated. For some extenders, the end-user can't even use the mouse and keyboard.

Durability

Potential difference is the most likely reason for these extenders died.

If the electrical load exceeded the maximum loading of the internal IC, the device would die. Long reach and poor-quality cables would intensify these conditions.

What Separate our USB extender from Others

Highly Compatible

Tested and verified with different USB devices in different makes to ensure the great compatibility

Tested and verified with different USB devices in different makes to ensure the great compatibility.

Long Product Life-span

Built-in a surge protector to protect the device from damages caused by potential difference

Built-in a surge protector to protect the device from damages caused by potential difference.

Highly Responsible

Provide fair warranty policy to guarantee each unit we sent is well-produced

Provide fair warranty policy to guarantee each unit we sent is well-produced. Otherwise, we'd love to solve the problem for you.

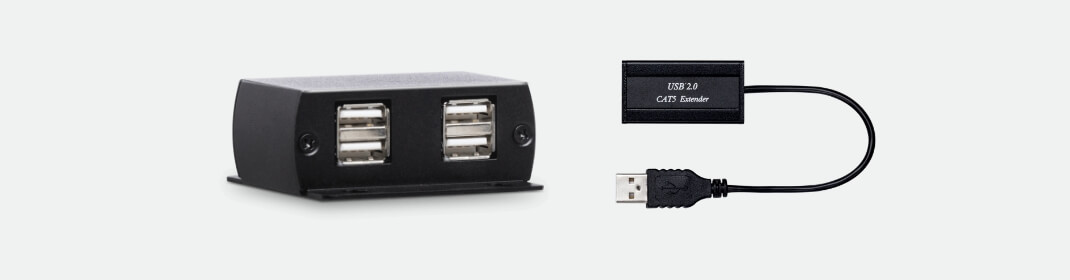

USB 2.0 CAT5e Extender with 4 Port Hub

UE03T, UE03R, USB 2.0 CAT5e Extender with 4 Port Hub
UE03T, UE03R

SC&T's UE03 is one of the kinds that have a long product lifespan and good performance at the same time. It has 4 USB2.0 ports to provide stable transmission for USB devices like USB cameras, touch panels, keyboards, mice, and printers, with a 50M transmission distance.

Features

UE03 Features

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Extends 4 USB signals over an Ethernet cable.
  • Signal extension up to 50M (USB2.0), 90M (USB1.0/ 1.1) over CAT5e.
  • Supports USB 2.0 high-speed and USB 1.1 low-speed, full speed devices.
  • Built-in 4 USB ports at TX unit for remote control.
  • Plug & play.

UE03 Diagram Application
Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon

Specification

ITEM NO.

UE03T (Device End)

UE03R (Host End)

Support

Compliance

USB 2.0, USB 1.1, USB1.0

Data Bandwidth

480Mbps (High-speed)
12Mbps (Full-speed)
1.5Mbps (Low-speed)

Max. Transmission Distance

50M (USB2.0), 90M (USB1.0/ 1.1)

Ports & Interfaces

Data Input

4 x USB Type A (Female)

1 x RJ45

Data Output

1 x RJ45

1 x USB Type A (Male)

Power Iutput

1 x 5.5mm * 2.5mm DC Jack

-
