HDMI® Transmission
Next
HDMI® Extender
Discontinued
Discontinued
Suggested Replacement Model
HKM01E

HDMI® & USB Keyboard Mouse CAT5e Extender 1080p 150M

  • Resolutions up to 1080p@60Hz & 1920 x 1200.
  • Signal extension up 160M over CAT6.
  • Built-in HDMI® loop-out port for an extra HDMI® display at TX side.
  • Built-in 2 USB ports at Rx side.
  • Workable with SR01X (IP repeater) for longer distance.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry
Overview
Features
Connection Diagram
Application
Resources
FAQ
Project Photos

HKM01E is an HDMI® KVM extender that sends HDMI® & USB signal over one CAT5e or greater cable. Its TX unit has a local loop out for an extra HDMI® monitor. And there are 2 built-in USB ports at the RX unit to connect with one keyboard and one mouse. It is an ideal solution for CCTV, digital signage, home network integration, and so on.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V
  • Resolutions up to 1080p@60Hz & 1920 x 1200.
  • Signal extension up 160M over CAT6.
  • Built-in HDMI® loop-out port for an extra HDMI® display at TX side.
  • Built-in 2 USB ports at Rx side.
  • Workable with SR01X (IP repeater) for longer distance.
Installaion View

‍

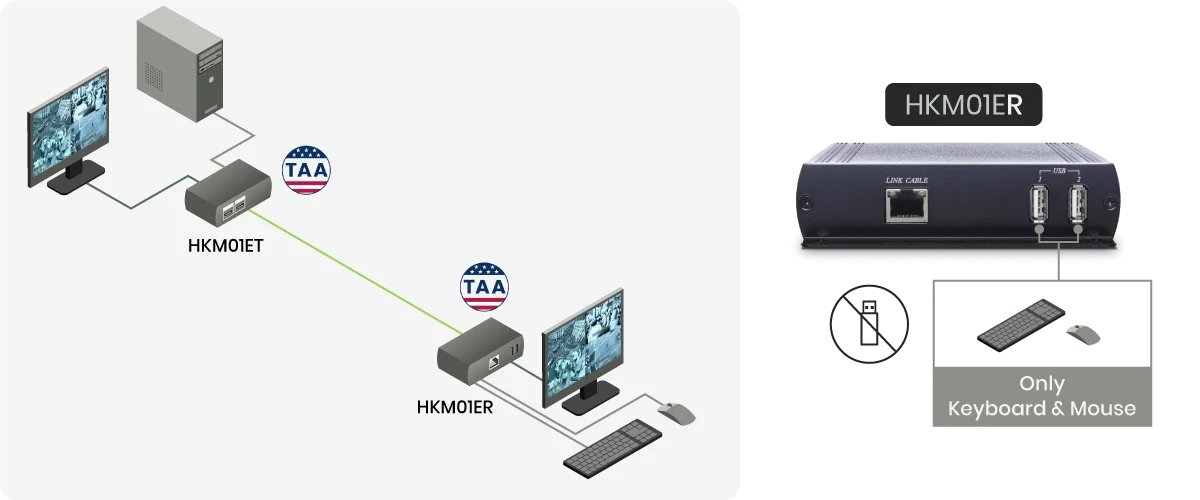

Work with HKM01E CAT5e Extender

‍

HDMI over IP Solution : Support Point to Many Connections via Network Switch‍
User Manual

HKM01E_User Manual_EN_V1.0_1904090.pdf

CAD

HKM01ET_CAD-20210504.pdf

HKM01ER_CAD-20210504.pdf

‍

Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon

Specification

ITEM NO.

HKM01ET

HKM01ER

Support

Max. Video Resolution

1080p@60Hz

Max. Transmission Distance

150M over CAT5e/ CAT6

Ports & Interfaces

Video Input

1 x HDMI Type A

1 x RJ45

Video Output

1 x RJ45

1 x HDMI Type A

Video Loop-out

1 x HDMI Type A

-

USB Interface

1 x USB Type B

2 x USB Type A
