HE02U-4K6G

4K 60Hz HDMI® KVM Extender with USB 2.0

  • Resolution up to 4096/ 3840 x2160@60Hz 4:4:4.
  • Signal extension up to 100m for 4096 x 2160@60Hz.
  • Built-in 4ports USB2.0 at the RX unit for USB cameras, flash drives, keyboards/mouse,etc.
  • Supports Ethernet transmission.
  • Supports CEC passthrough
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models

High-quality Video

Providing richer A/V environment with 4K 60Hz HDMI video and multi-channel audio.

Remote Control

Enabling USB device connectivity from remote or virtualized hosts.

Audio Integration

Built-in 3.5mm phone jack/ SPDIF to connect an external audio speaker.

Inquiry

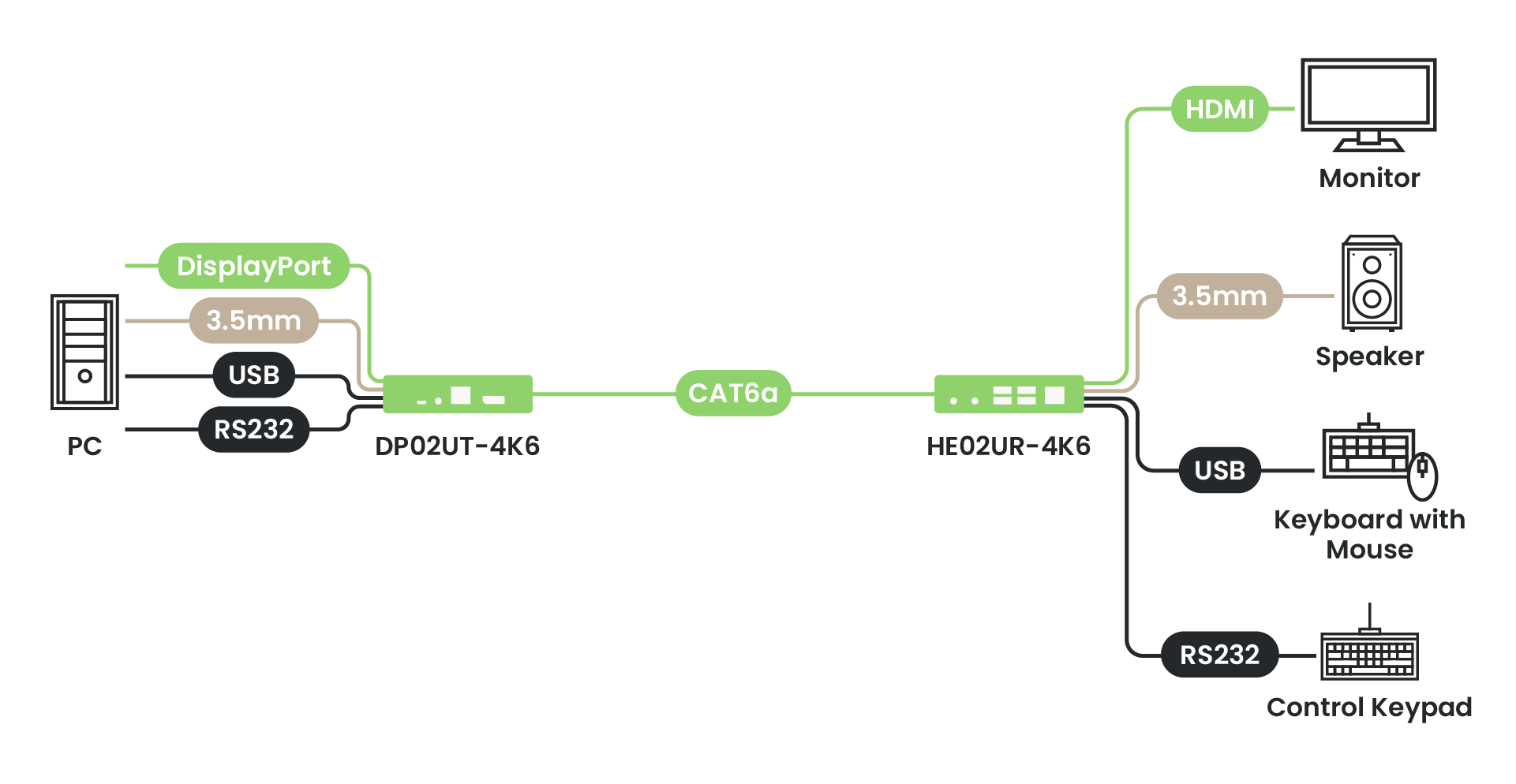

HE02U-4K6G is an HDMI over HDBaseT Extender which is able to send uncompressed video, digital & analog audio, RS232 signals, with resolution up to 4K@60Hz 4:4:4 and transmission distance up to 100M. It uses the Valens Stello VS3000 chipset, which is the only solution for long-range distribution of uncompressed video, with zero latency. The 4 built-in USB ports at RX unit can connect multiple USB devices, such as keyboards, mouses, and flash drives.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Resolution up to 4096/ 3840 x2160@60Hz 4:4:4.
  • HDBaseT for transmission of uncompressed UHD video at almost zero latency.
  • Signal extension up to 100m for 4096 x 2160@60Hz.
  • Built-in 4ports USB2.0 at the RX unit for USB cameras, flash drives, keyboards/mouse,etc.
  • Supports bi-directional RS232 transmission.
  • Supports Ethernet transmission
  • Supports HDMI loopout
  • Supports CEC passthrough
  • Supports HDMI audio and 3.5mm input/output at Tx or Rx.
  • HDCP compliant.
Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon

Specification

ITEM NO.

HE02UT-4K6G

HE02UR-4K6G

Support

Compliance

HDMI 2.0, HDCP 1.4/ 2.2, USB 2.0

Max. Video Resolution

4K@60Hz 4:4:4

Max. Transmission Distance

100M (HDBaseT3 certified CAT6a U/FTP cable)

RS-232 Baud Rate

115200 bps/ Full duplex

Ports & Interfaces

Video Input

1 x HDMI

1 x HDBaseT

Video Output

1 x HDBaseT

1 x HDMI

Audio Input

1 x 3.5mm Phone Jack

1 x 3.5mm Phone Jack

Audio Output

1 x 3.5mm Phone Jack

1 x 3.5mm Phone Jack

USB Connector

1 x USB-Type B

4 x USB-Type A

RS232 Interface

1 x (3.5mm) Phone Jack

1 x (3.5mm) Phone Jack

Console (Firmware Upgrade)

1 x USB Micro-B

1 x USB Micro-B

LED Indicators

3-LED Status:Power/Link/ACT

3-LED Status:Power/Link/ACT
