4K 60Hz HDMI Audio Extractor Splitter with Video Scaler
No items found.
4K 60Hz HDMI Audio Extractor Splitter with Video Scaler
4K 60Hz HDMI Audio Extractor Splitter with Video Scaler (Back)
4K 60Hz HDMI Audio Extractor Splitter with Video Scaler (Side)
4K 60Hz HDMI Audio Extractor Splitter with Video Scaler (Top)
No items found.
HAE01

4K 60Hz HDMI Audio Extractor(HDMI/SPDIF/Stereo) with dual HDMI Outputs and Up/down Scaler

  • Resolution up to 4K@60Hz 4:4:4.
  • Built-in dual HDMI outputs.
  • Built-in Toslink (digital audio) and 3.5mm phone jack (analog audio) interfaces.
  • Supports video up/down scaling function.
  • Supports chroma resampling function, 4K HDMI 4:4:4/ 4:2:2 to 4:2:0 conversion.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
4K 60Hz Resolution

High-Quality Video

4K 60Hz with a chroma sampling rate of 4:4:4, presenting high-quality pictures.

Video Scaler

Video Scaler

Able to play high-resolution video on legacy displays or upscale the low resolution to have a better visual experience.

Audio Extraction

Audio Extraction

Easy to integrate with advanced audio equipment to perform up to 7.1 CH surround audio.

Chroma Subsampling

Chroma Subsampling

Allow using a cost-effective cable to transfer high-quality/ high bandwidth video.

Inquiry

HAE01 is a multi-functional HDMI distributor with built-in audio extraction and video scaling functions. It can split an HDMI signal into two endpoints and up/down-scale the resolution from 1080p to 4K or vice versa, allowing it to show one video with different resolutions on two TVs. The splitter can also extract the audio signal from the HDMI and output it via either the SPDIF interface or a 3.5mm phone jack. With the audio extraction function, you can easily integrate a high-end audio amplifier and HDMI displays to have a superior visual and audio experience.

HDMI Audio Extractor with Splitter & Scaler

Use 1 in 2 out HDMI Audio Extractor for 4K HDMI scalable output and audio extraction.

Compact Size with Powerful Functions

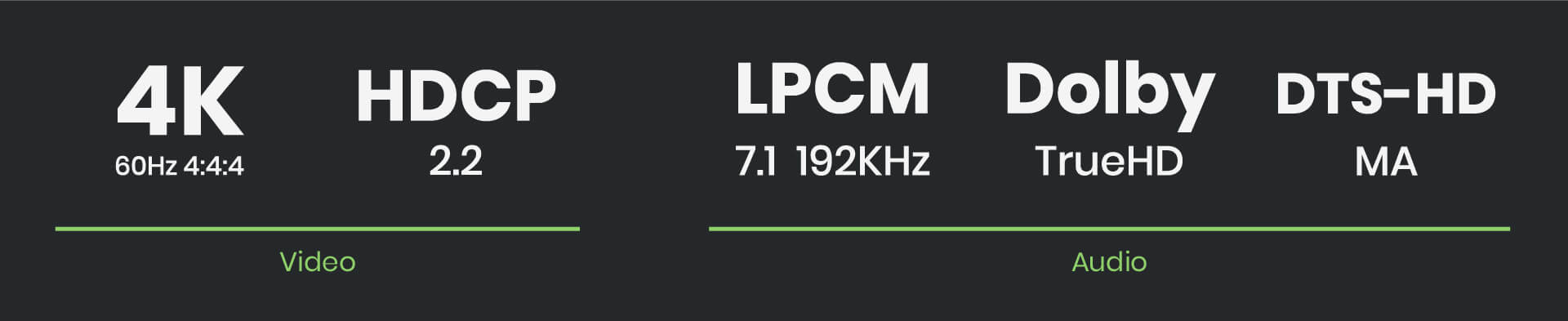

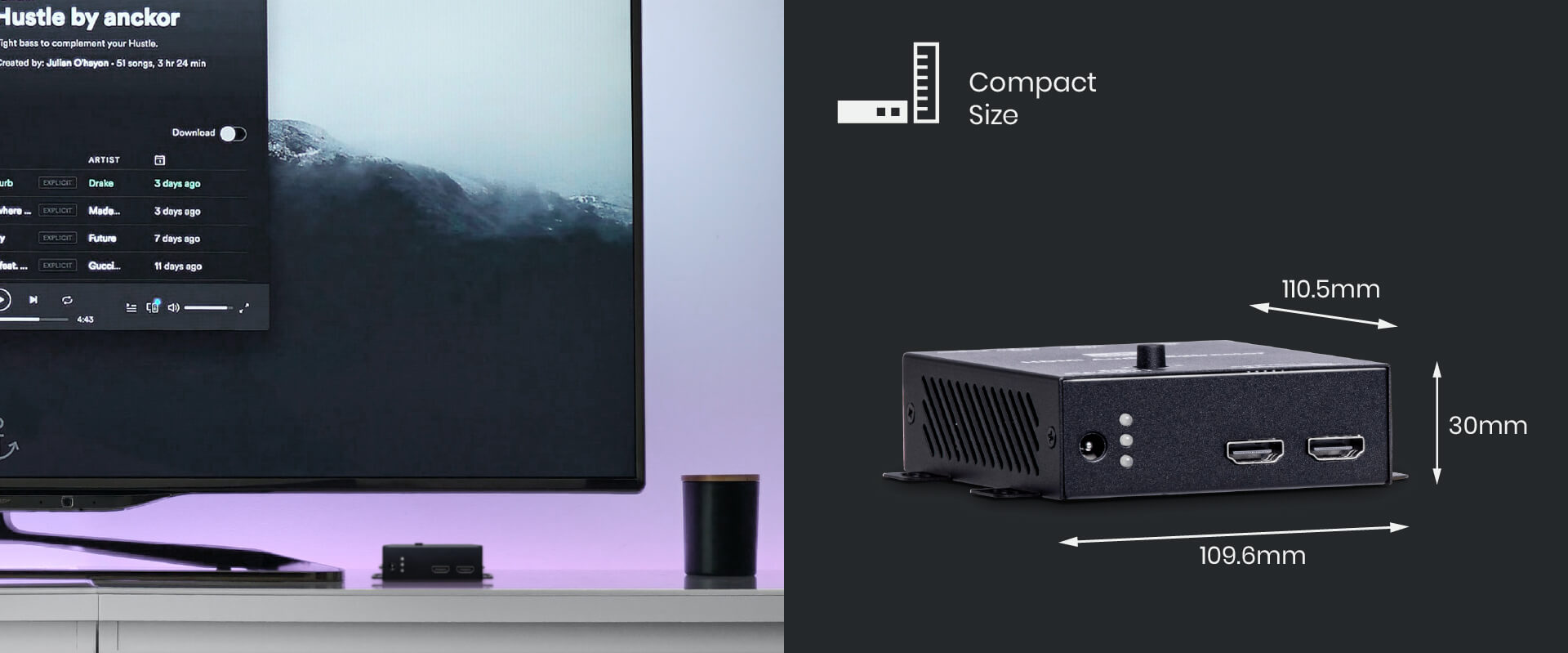

A compact HDMI audio splitter, also an audio extractor with 4K/1080p video scaler function.
4K 60Hz HDMI Audio Extractor specifications.

Suitable for Different Applications

With the built-in dual HDMI outputs, HAE01 can work as an HDMI distributor to display the video on two HDMI screens or as an audio extractor to connect one HDMI screen and one audio amplifier, making your A/V installation more flexible.

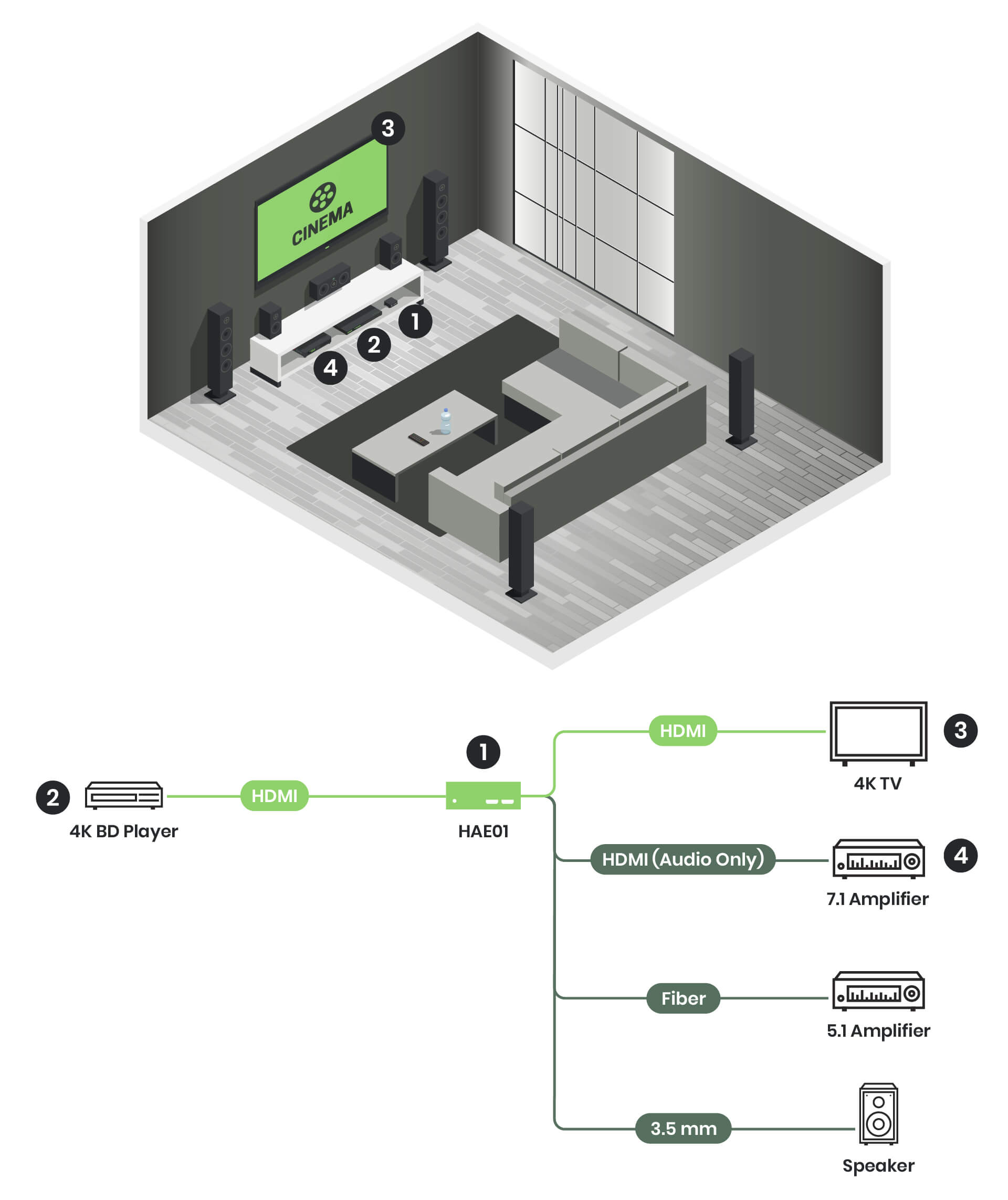

HDMI to HDMI audio extractor with audio output to the amplifier.

Easy to Integrate with Different Audio Equipment

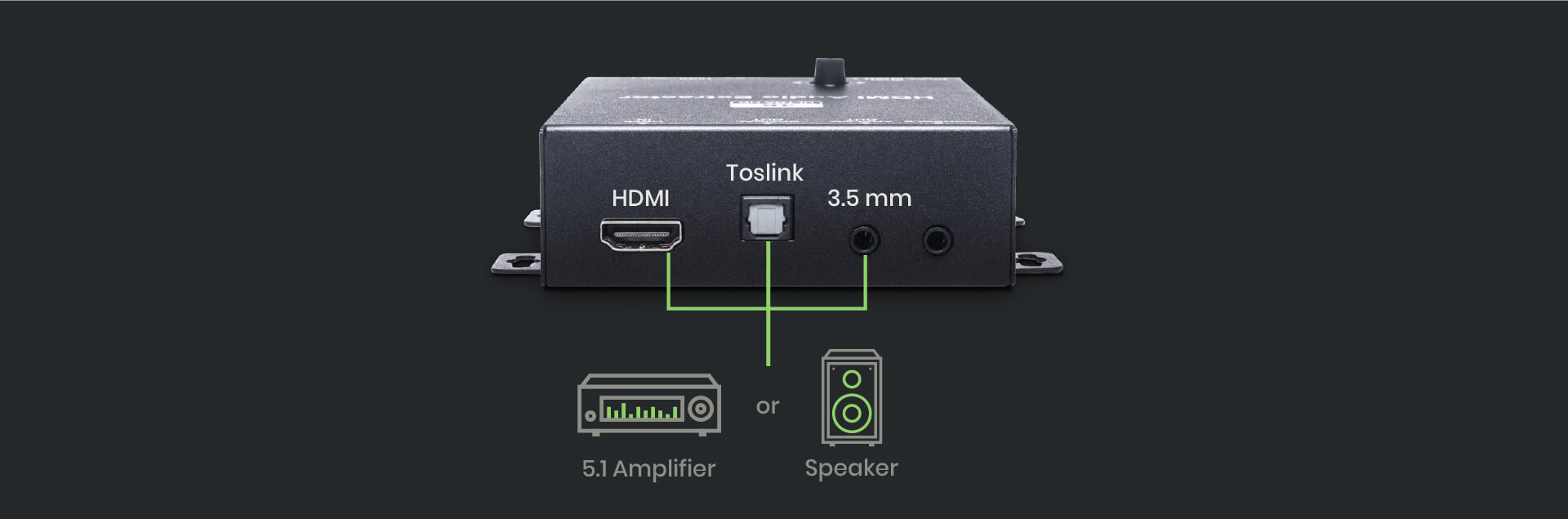

As an audio extractor, HAE01 has HDMI, Toslink, and 3.5mm jack interfaces for you to connect to a digital or analog audio device, bringing more possibilities to your integration.

4K HDMI splitter 1x2 connection diagram to 2 HDMI outputs and amplifier & speaker.

Works with New/Legacy Displays

Regardless of new or old TVs, HAE01 can provide the correct video format to allow video to be properly presented. When your A/V source and TV support 4K HDMI but the AV receiver only supports 1080p, you can downscale the 4K signal to 1080p for the old AV receiver while playing your video in 4K resolution.

HDMI Audio Extractor with 3.5mm and Toslink SPDIF interface.

EDID Management

With the EDID management system, HAE01 provides A/V formats that all output devices can support.

EDID for HDMI 4K 60Hz and HDMI 1080p displays

Video Scaler

As a video scaler, HAE01 provides the best A/V format for each output device.

Compatible with Multiple Devices, Providing More Flexibility

HAE01 can work with A/V equipment like HDMI switcher, matrix switcher, and distributor, extracting audio from each port and playing it on audio devices like amplifiers, and speakers.

The following equipments are frequently used with HAE01:

HDMI Extender for Long-Range AV Extension

HDMI Extender over Cat5e 100m extension with IR/RS232 control signals

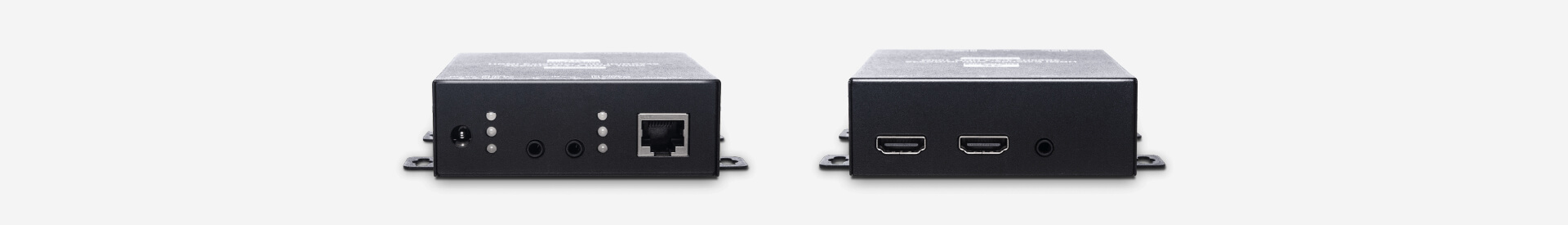

HE02EX - 4K 60Hz 4:4:4 HDMI & IR/R232 CAT5e Extender
  • Resolution up to 4K 60Hz 4:4:4
  • Distance up to 70M
  • Built-in HDMI loop-out port
  • Supports IR, RS232 transmission
  • Supports EDID, CEC

Audio Amplifier for Connecting More Speakers

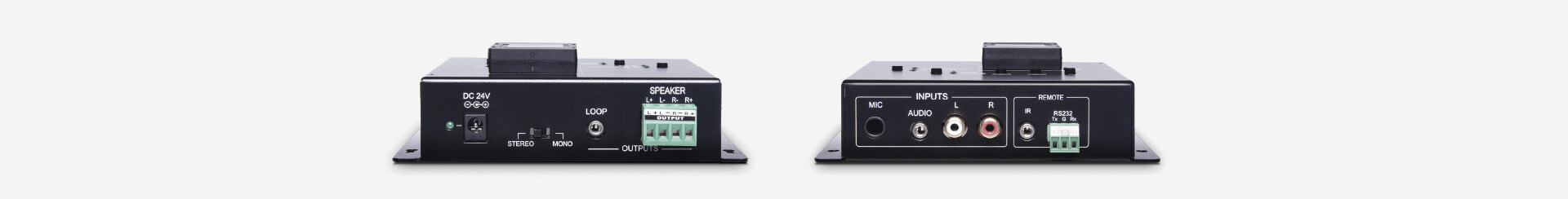

VAB-1231 - Bluetooth Digital Amplifier Kit
  • 2-CH 60W (30W for each channel)
  • Chainable up to 3 pcs of VAB-1231 (6 audio speakers)
  • Source Input via 3.5mm phone jack, RCA, Bluetooth connection

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Resolution up to 4K@60Hz 4:4:4.
  • Built-in dual HDMI outputs.
  • Built-in Toslink (digital audio) and 3.5mm phone jack (analog audio) interfaces.
  • Supports video up/down scaling function.
  • Supports chroma resampling function, 4K HDMI 4:4:4/ 4:2:2 to 4:2:0 conversion.
  • Supports HDCP 2.2 to 1.4 conversion.
  • Supports HDMI audio extract for integrating with external audio equipment.
  • Supports OSD menu to check functions & modes.
  • Supports EDID management.
4K HDMI Audio Extractor
4K HDMI Audio Extractor Connection Diagram

Extracts the audio signal from the HDMI, and connects to an amplifier through a 3.5mm phone jack or SPDIF interface.

4K HDMI Up/Down Scaler with Audio Extractor
4K HDMI Up/Down Scaler with Audio Extractor Connection Diagram

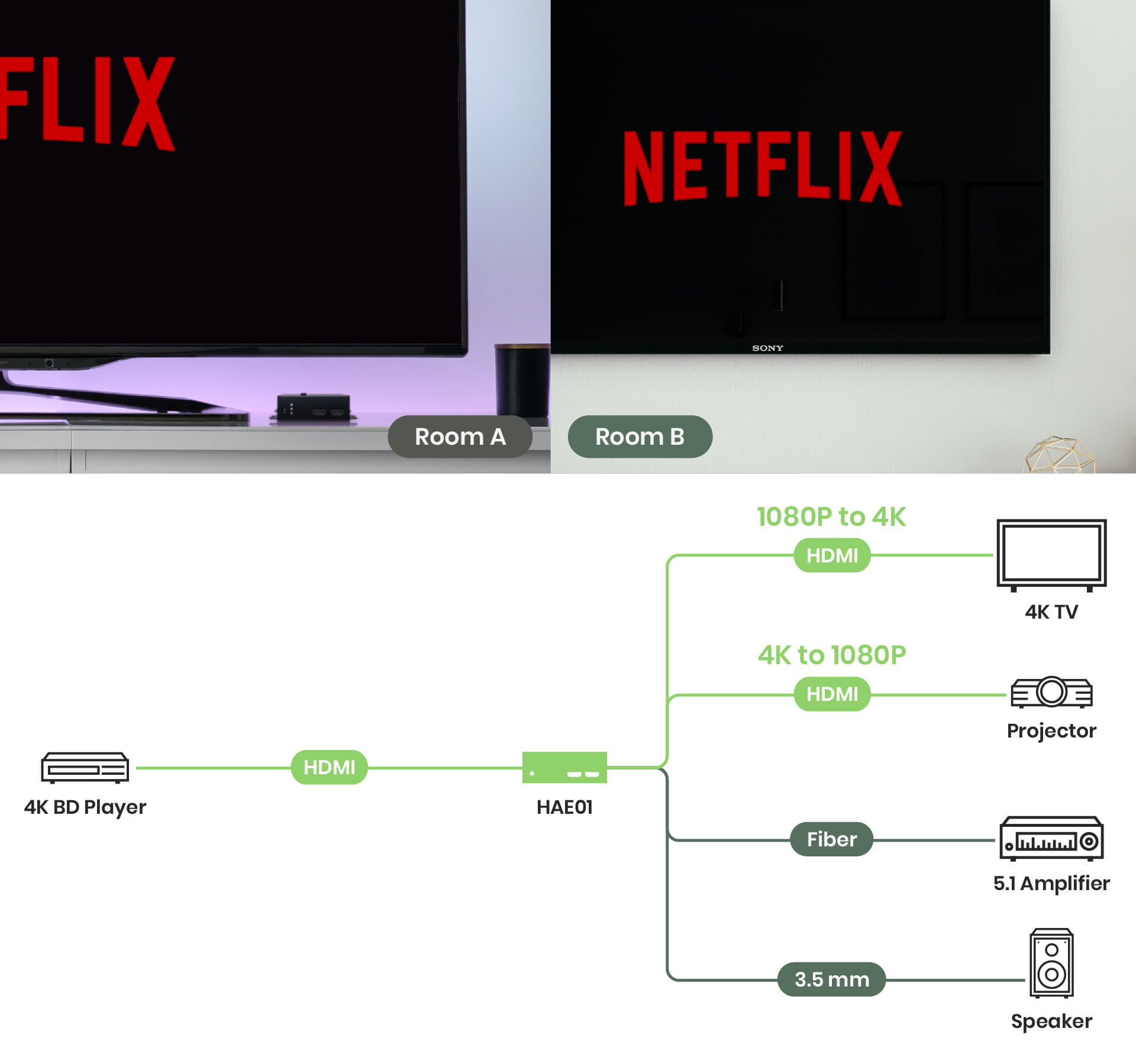

Upscale a 1080p HDMI source to 4K to connect a high-end 4K TV, or down-scale a 4K HDMI source to connect a legacy display.

Firmware/Software

Release Date

Ver.

Release Note

File Name

November 1, 2021

V1.0_2111011

Firmware Upgrade
icon

Release Date

November 1, 2021

Ver.

V1.0_2111011

Firmware Upgrade
icon

September 21, 2021

V1.0_2109221

Firmware Upgrade
icon

Release Date

September 21, 2021

Ver.

V1.0_2109221

Firmware Upgrade
icon

February 12, 2019

V1.0_1902142

Firmware Upgrade
icon

Release Date

February 12, 2019

Ver.

V1.0_1902142

Firmware Upgrade
icon
Tutorial Video

Show More
icon

Specification

ITEM NO.

HAE01

Support

Compliance

HDMI 2.0, HDCP 2.2, 3D, HDR

Max. Video Resolution

4K@60Hz 4:4:4

Video Bandwidth

18 Gbps

Audio Format

7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA

Ports & Interfaces

Video Input

1 x HDMI Type A

Video Output

2 x HDMI Type A

Digital Audio

1 x TOSLINK

Analog Audio

1 x (3.5mm) Phone Jack

RS232 Interface

1 x DB9 Female / 3.5mm Stereo Phone Jack (Firmware Update)

Show More
Expand more

Get a Quote Today

Any questions about the product? Contact us by filling in the inquiry form in a few seconds, and get the quickest response from us!

Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models

More
Close
HAE01

4K 60Hz HDMI Audio Extractor(HDMI/SPDIF/Stereo) with dual HDMI Outputs and Up/down Scaler

Thank you! Your request has been accepted. We look forward to getting in touch with you and hope you won’t find our email in the junk folder!
