HE01F-4K6G

4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender

  • Resolution up to 4K@60Hz 4:4:4.
  • Signal extension up to 60KM over fiber optic cable.
  • Supports bi-directional IR, RS232, USB transmission (Send one at a time).
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Extremely-long transmission distance.

Extremely Long Distance

Overcoming the length restriction of a standard HDMI cable to extend the signal everywhere you want.

Support USB mouse I keyboard, R remote control, and RS232.

Options for Remote Control

Allowing to use RS232 command, IR remote, or keyboard & mouse to control a remote device.

4K 60Hz Resolution

High-Quality Video

4K 60Hz with a chroma sampling rate of 4:4:4, presenting high-quality pictures.

Inquiry

HE01F-4K6G is an HDMI extender that uses a multi-mode or single-mode SFP+ fiber optic cable to send 4K 60Hz HDMI with USB, RS232, or bi-directional IR signal, overcoming the length restriction of a standard HDMI cable to watch the video 60km away from the HDMI source. You can also use RS232 commands, IR remote, or keyboard & mouse to remotely control your PC/ DVR/NVR...etc. It's an ideal solution for industrial, military, government, and residential projects.

HDMI Fiber Extender with KVM/IR/RS232 is ideal for HDMI extension and control needs in precise manufacturing.

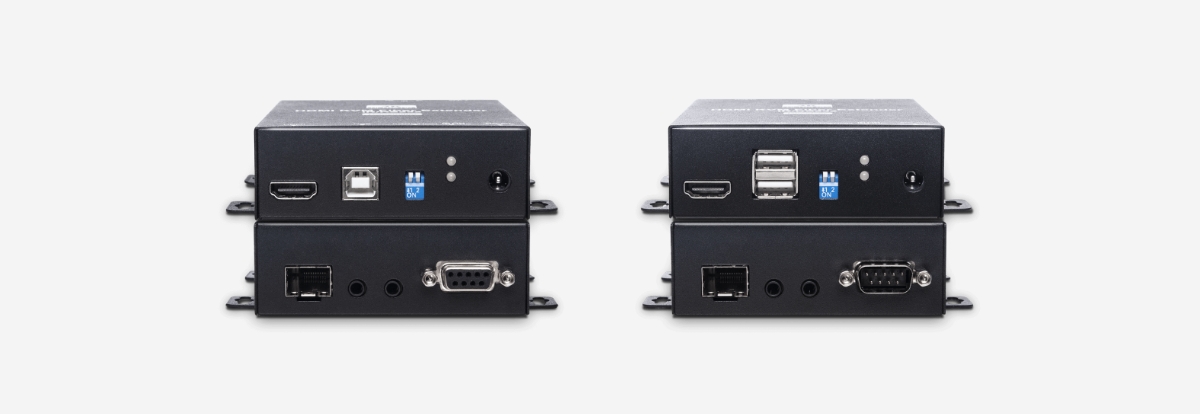

4K HDMI KVM Fiber Extender

HE01F-4K6G is a 4K@60Hz HDMI KVM Extender that not only extends your high-resolution video but allows you to switch between different remote control ways, including USB, IR remote control, and RS232.

4K 60Hz HDMI Fiber Extender with KVM/IR/RS232

HDMI over Fiber Extender Features

Resolution Up to 4K@60Hz

HE01F-4K6G offers a resolution of up to 4K@60Hz, ensuring excellent visuals.

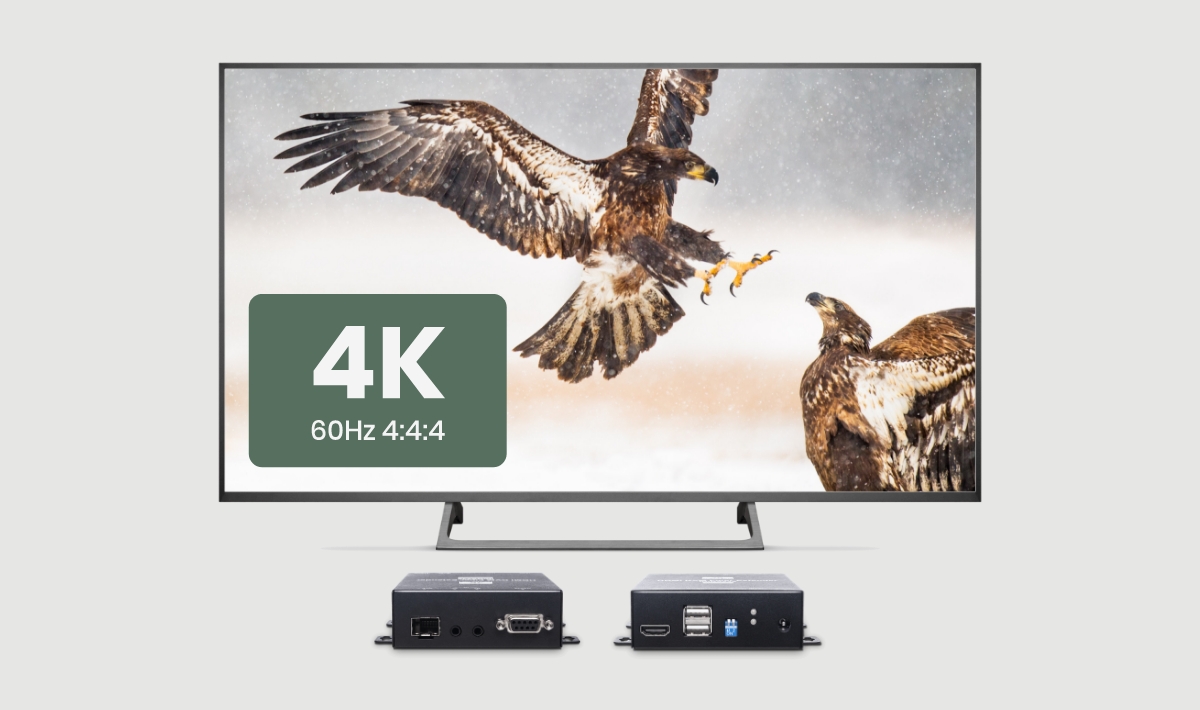

4K 60Hz UHD display via HDMI over Fiber Extender.

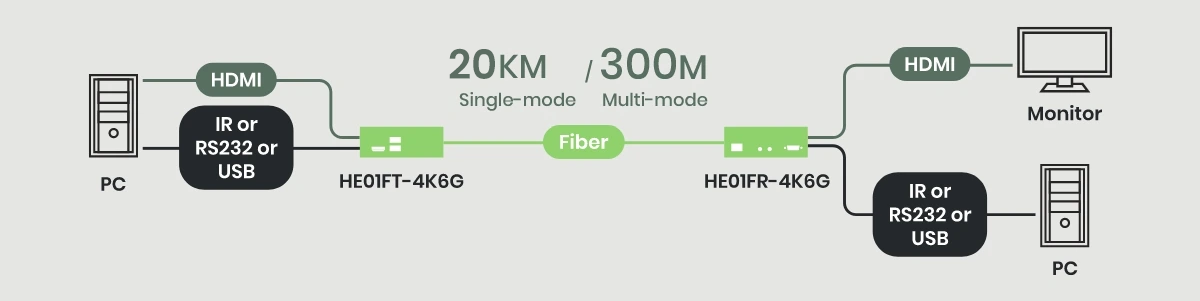

4K HDMI over Fiber Extender over single-mode fiber for 20KM / multimode fiber for 300m, with KVM/IR/RS232.

Extremely Long Range over Single-Mode/Multimode Fiber

HE01F-4K6G comes with a 10G SPF+ module, which can send signals for 20km over single-mode fiber and 300m over multimode fiber. You can also purchase other modules for a longer transmission distance of up to 60km.

Diverse Control Options

Supports USB (keyboard and mouse only), IR, and RS232 signals to easily control your remote devices.

Clear Signal Lights

Signal lights indicate whether the device is operating.

HDMI Fiber Extender easy installation with LED light.

Latency Less Than 1 Frame

HE01F-4K6G transmits signals with latency less than 1 frame, providing rapid video and data transmission.

4K 60Hz HDMI Fiber Extender, no signal latency.

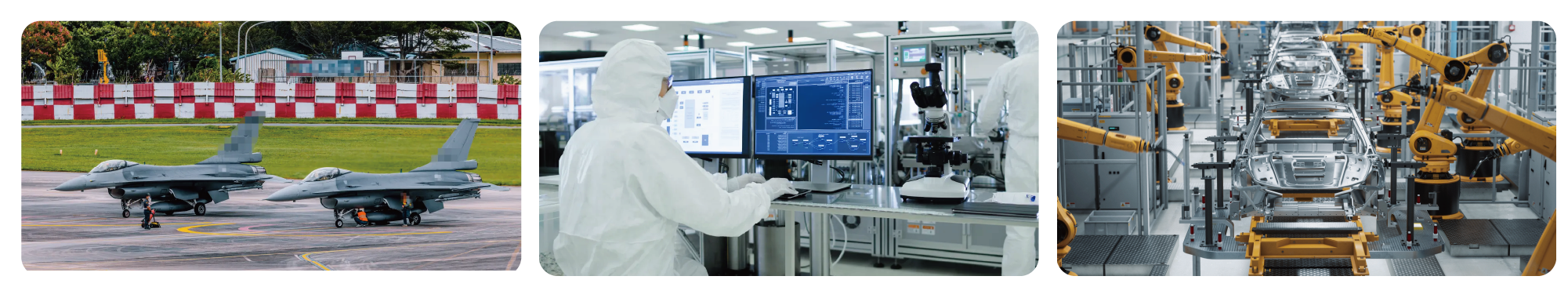

HDMI over Fiber Extender Application

HDMI Fiber Extender application & connection diagram.

SC&T Professional HDMI Fiber Extenders

4K HDMI Fiber Extender Dongle

4K 30Hz HDMI to Fiber Extender 1KM Dongle
HE01F-4K

  • Resolution up to 4K 30Hz 4:4:4.
  • Built-in LC connector.
  • Transmission distance up to 1km over single-mode fibers, and 300m over multi-mode fibers.

4K HDMI KVM Extender over Fiber/Ethernet

4K HDMI KVM Extender over Fiber/Ethernet
HKM01-4K

  • Resolution up to 4K 30Hz 4:4:4.
  • Signal extension up to 140m over CAT6.
  • Supports SFP 1G fiber module for 60KM over single-mode fiber.
  • Built-in local loop out for an extra HDMI display at TX.
  • Built-in 4 USB ports at RX for remote control.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Resolution up to 4K@60Hz 4:4:4 (18Gbps bandwidth).
  • Supports HDMI 2.0, HDCP 2.2, 3D, and HDR.
  • Signal extension up to 60KM over single-mode fiber optic cable.
  • Signal extension up to 300M over multi-mode fiber optic cable.
  • Supports full-duplex RS232 (115200bps), bi-directional IR (30~60KHz), and 2 ports of USB 2.0 for remote control (Send one at a time).
  • Supports LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA, ATMOS, DTS:X.

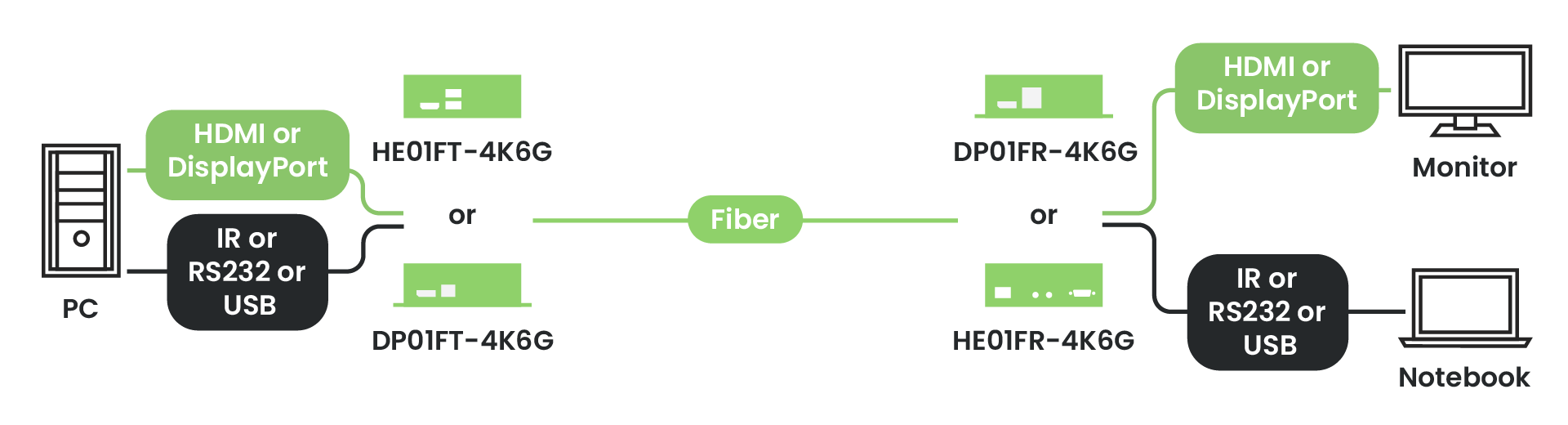

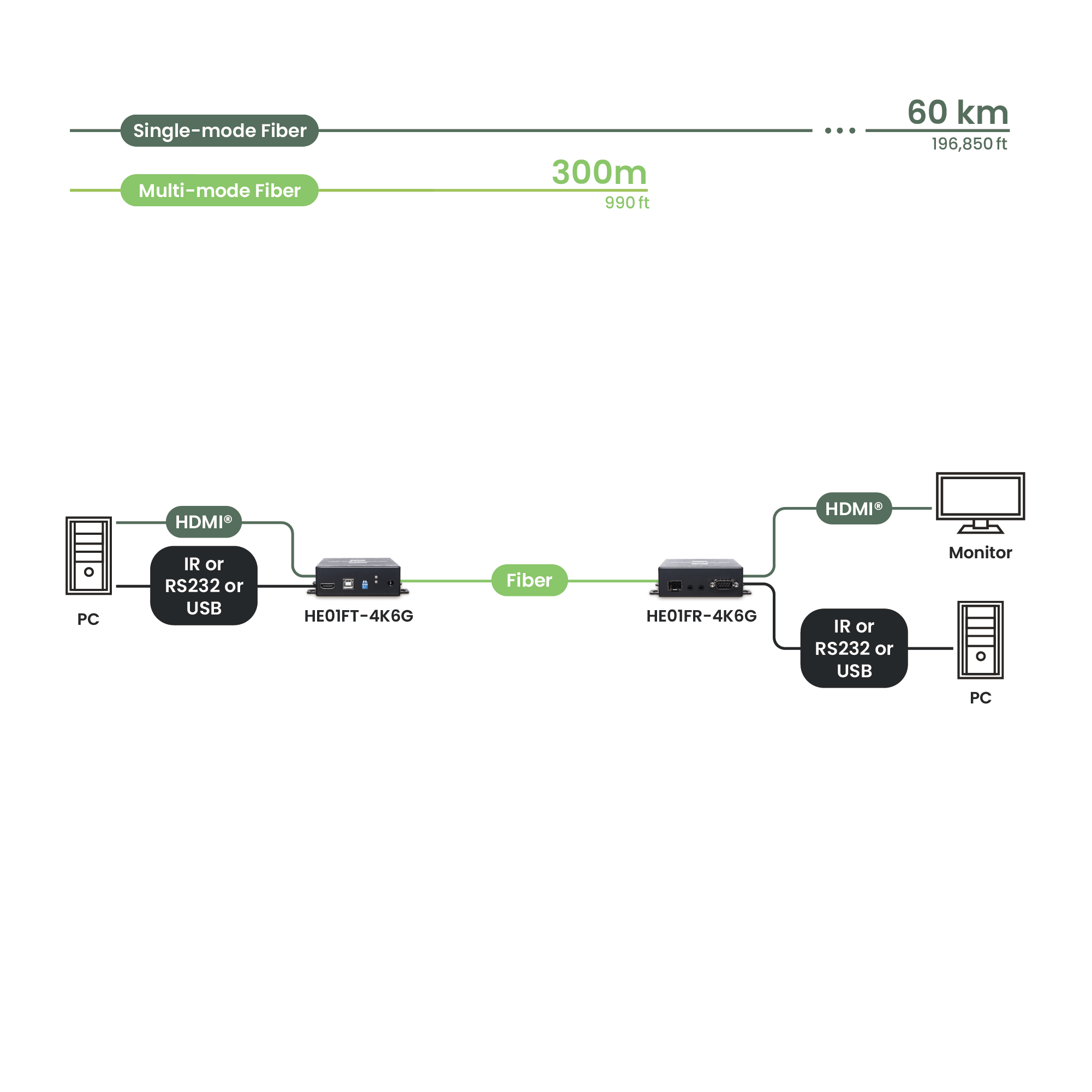

4K HDMI over Fiber Extender connection diagram.
Extends an HDMI source from a PC end to a monitor/ notebook 60KM away and controls the remote device using RS232 commands, IR remote, or a USB keyboard & mouse.
Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon
Q: What are the specifications of the 10G SFP+ module you provide?

A:

SFP+ Single-Mode Modules

  • Connector: LC
  • Distance: Up to 20km over single-mode fiber.
  • Hot-swappable.

SFP+ Multimode Modules

  • Connector: LC
  • Distance: Up to 300m, depending on the multimode fiber cables used (OM1 to OM4).
  • Hot-swappable.

SC&T provides modules that use LC connectors. If you want to use other fiber connectors, please purchase the corresponding fiber modules.

For more information on fiber optic cables and modules, see What Should We Consider When Choosing Fiber Optic Cables and Extenders?

Q: Can I use other SFP+ modules?

A: Yes, you can use other SFP+ modules, with a maximum distance of 60km.

Q: Can I transmit USB, IR, and RS232 at the same time?

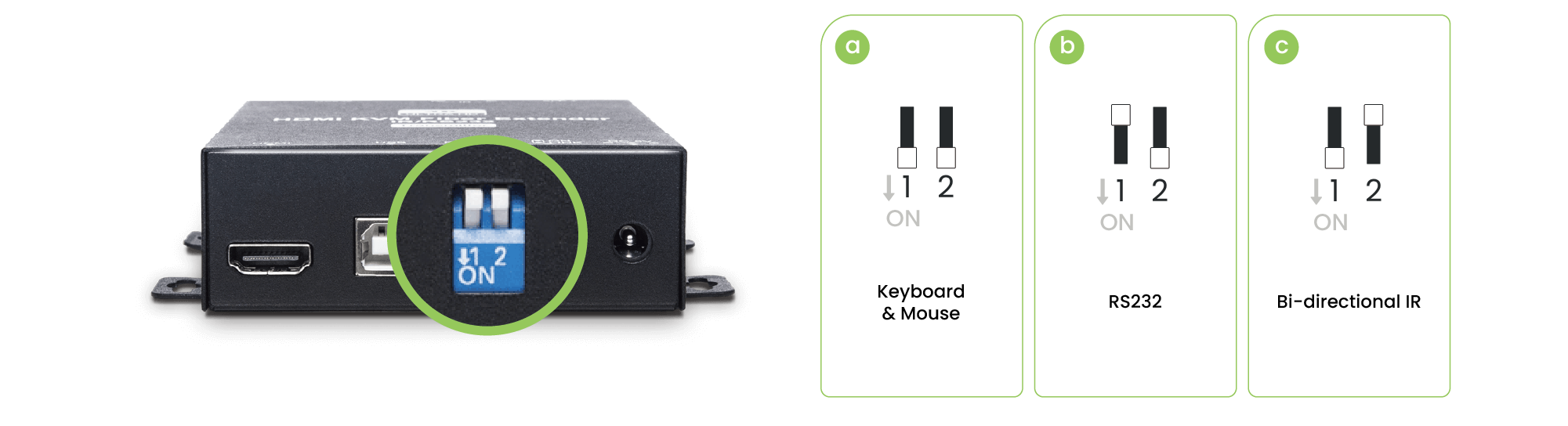

A: No. You can choose only one control option at a time; you can change it via the dip switch on the device.

Q: Can I use HE01F-4K with bi-directional SFP+ and run it for a long time?

A: Yes, HE01F-4K has been tested by SC&T and can run for over 120 hours.

HDMI to Fiber Converter/Extender Applications

Specification

ITEM NO.

HE01FT-4K6G

HE01FR-4K6G

Support

Compliance

HDMI 2.0, HDCP 2.2, 3D, HDR

Max. HDMI Resolution

4K@60Hz 4:4:4 18Gbps

Max. Transmission Distance

60KM over Single-mode, 300M over Multi-mode

Audio Support

LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA, ATMOS, DTS:X

RS232 Brad Rate

115200 bps/ Full Duplex

IR Support

30~60KHz/ T: ±10°/ R: ±55°/ 5M /Bi-Directional

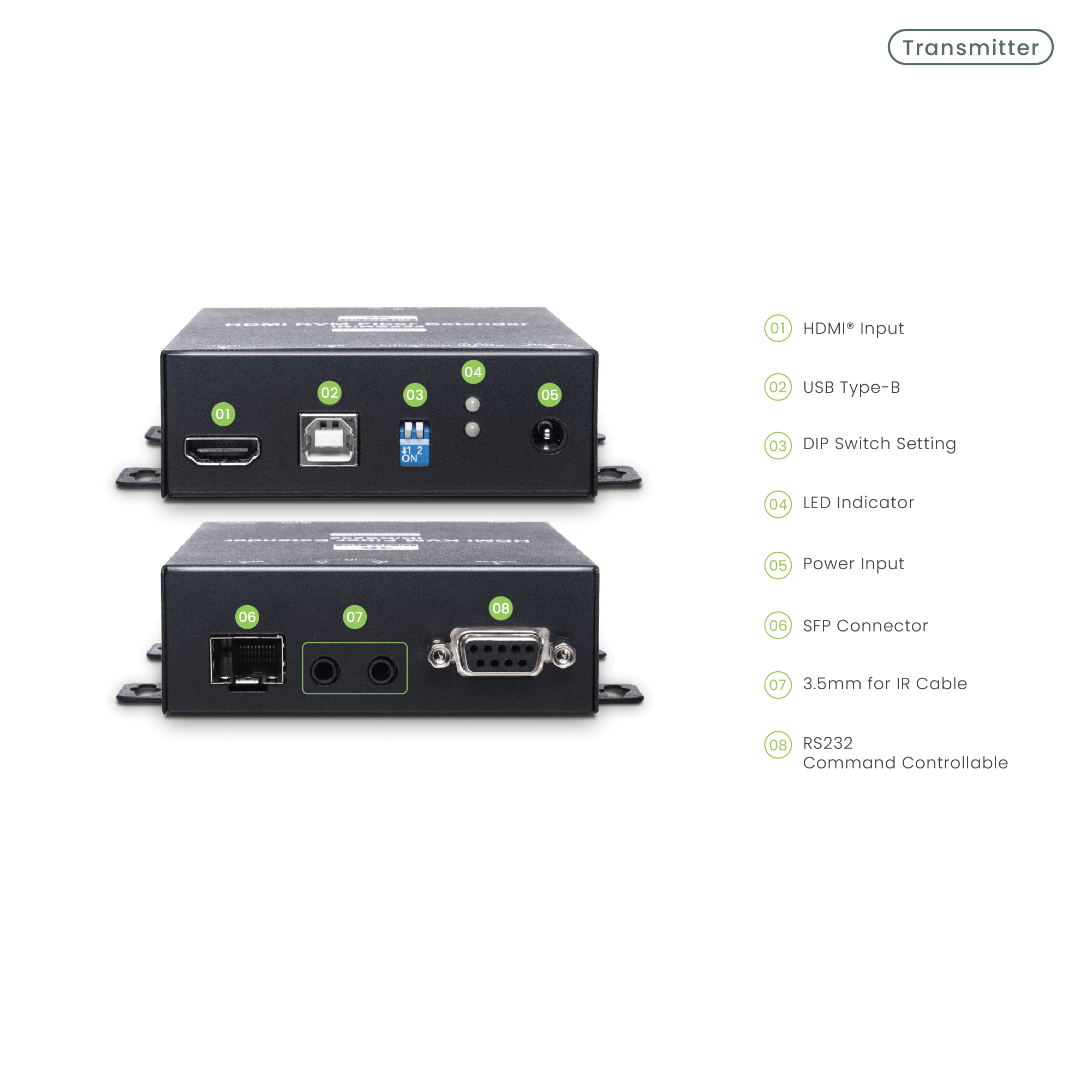

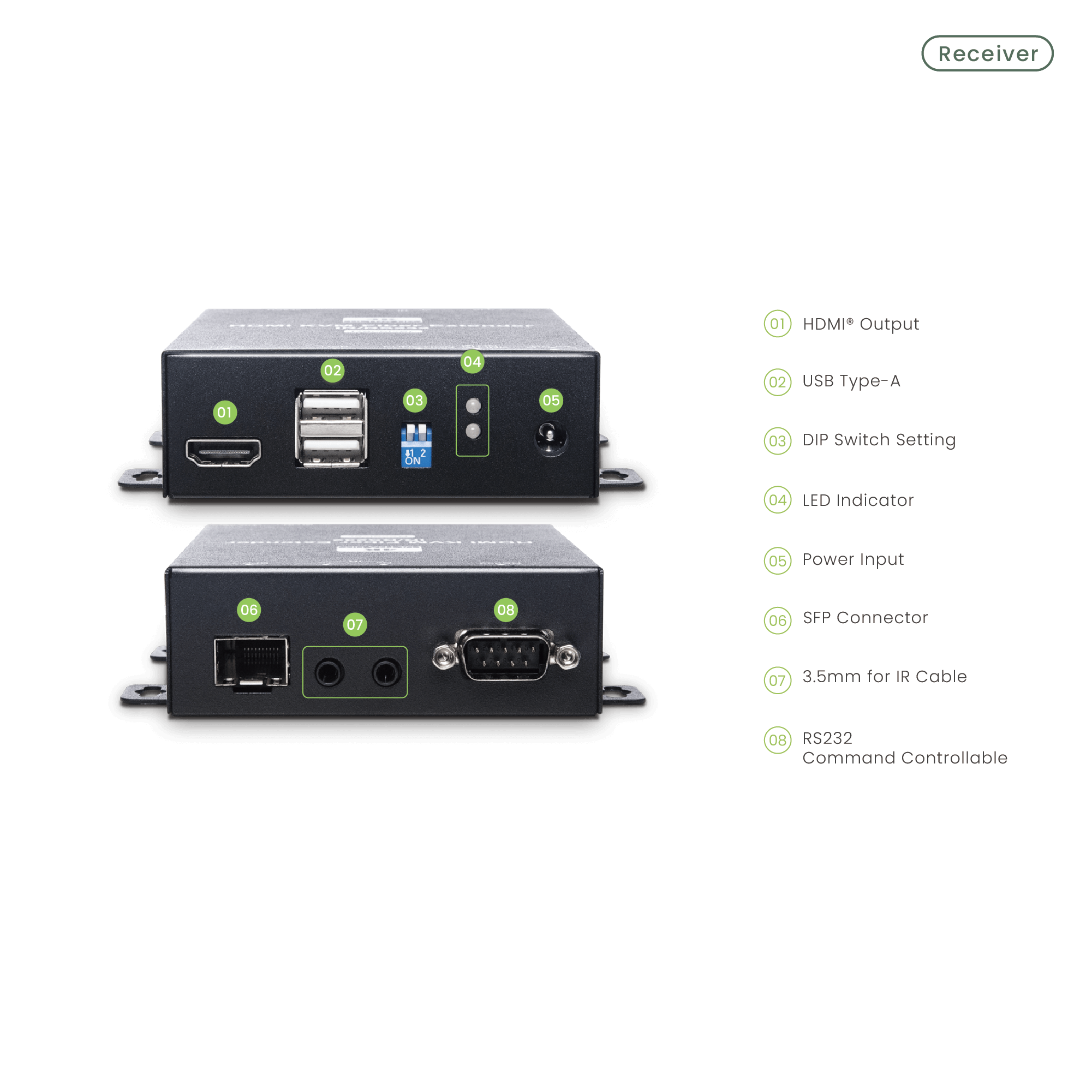

Ports & Interfaces

Input Connector

1 x HDMI Type A

1 x SFP+ 10G

Output Connector

1 x SFP+ 10G

1 x HDMI Type A

RS232 Connector

1 x DB9(Female)

1 x DB9(Male)

IR Connector

1 x 3.5mm Phone Jack

1 x 3.5mm Phone Jack

USB Connector

1 x USB Type B

2 x USB Type A

Link Cable

Multi-mode/ Single-mode Fiber Optic Cable
